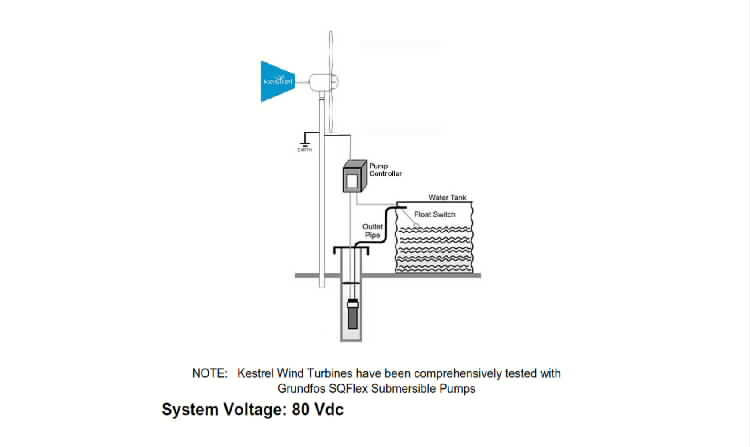

The combination of the Kestrel Wind Turbine and
Grundfos SQFlex range gives efficient water delivery
from a wind speed of 3m/s. The maximum pump output
is achieved from wind speeds of 5m/s and above. The
Maximum Power Point Tracking (MPPT) function of the
pump was enhanced by the efficient performance of
the Kestrel. The pump optimises the available energy
and only causes momentary stalling of the wind
turbine at very low wind speeds. No additional
controller is required and since the Kestrel outputs
dc electricity, no rectifier system is necessary.
|
See systems in action:
- Pietersburg, South Africa
In a low wind region near the Mozambiquan border, an e300
(1kW) with a patented Kestrel Voltage Limiter (only required
in a 110Vdc system) was installed with the Grundfos
Controller and SQFlex pump. The Kestrel Voltage Limiter was
installed to optimise the potential output. The installation
has been operational for 2 years without any failure.
Installed by Giel de Kok.
- Water for All, South Africa
Direct system, an e300 (1kW) with Grundfos Controller and
SQFlex pump (direct system is 80Vdc) was installed in a
school to pump water as part of a water development project.
System has been running well since 2007, with no issues.
Installed by Carl Nienaber.
